BASOO BS-5500iWG 3.5 kW Inverter Welding Generator
BASOO BS-5500iWG inverter welding generator with 3.5 kW listed generator output, 236 cc engine and 15 L tank. Request welding specifications and a quote.
Product Description
Inverter welding generator for mobile work
The BASOO BS-5500iWG combines generator and welding functions in an open-frame unit. The supplied specification lists 3,500 W generator output for both the rated and maximum power figures, alongside a 236 cc BS-170 engine and 15 L fuel tank.

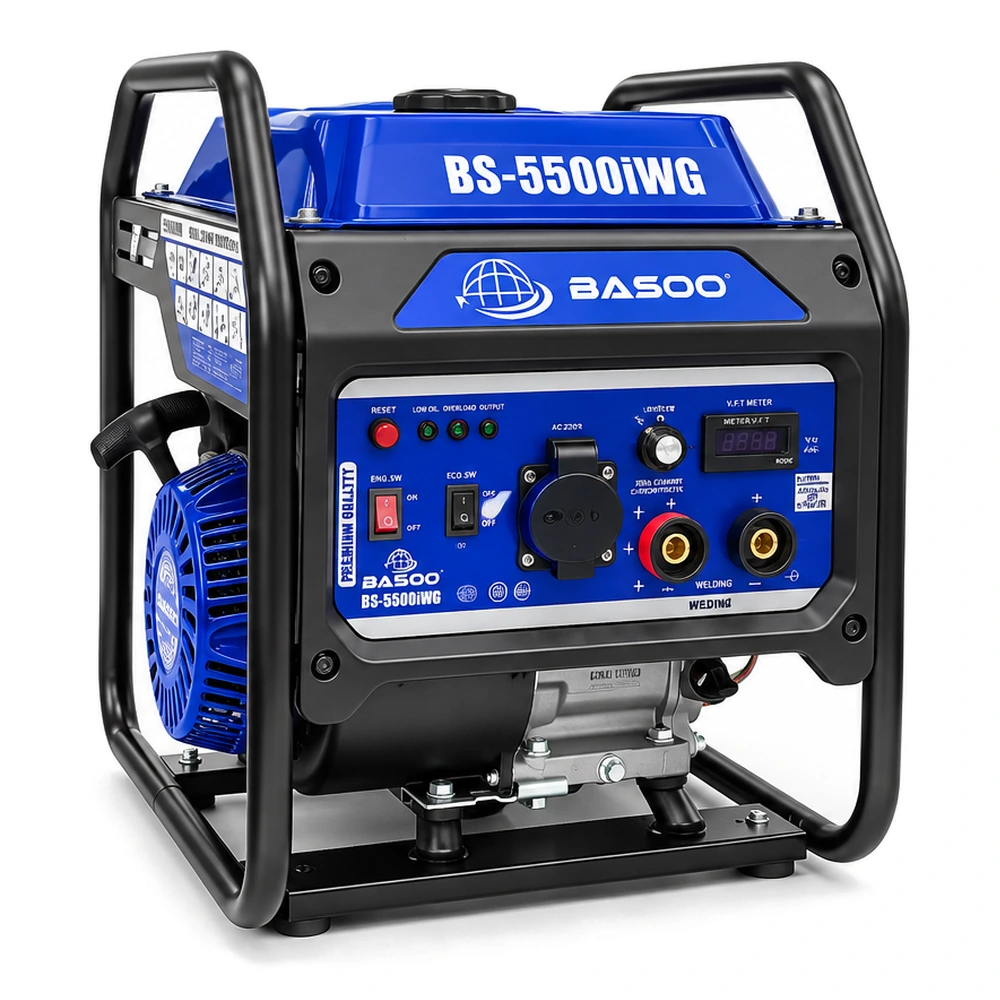

The front panel includes welding cable connections, an adjustment control, a covered AC outlet and a digital meter. This layout makes it a model to consider for mobile fabrication and repair work once the welding current range, duty cycle and electrode requirements have been matched to the intended job.
Key features
- Generator and welding functions: a combined unit with separate AC outlet and welding cable connections.
- 3.5 kW listed generator output: the specification gives the same 3,500 W value for rated and maximum power.
- 236 cc BS-170 engine: paired with a 15 L fuel tank.
- Front-mounted controls: welding adjustment control, digital meter and operating indicators.
- Open-frame construction: a defined frame around the engine and panel for transport planning.
Technical specifications
| Specification | Details |
|---|---|
| Model | BS-5500iWG |
| Product type | Inverter Welding Generator |
| Rated generator output | 3,500 W (3.5 kW) |
| Maximum generator output | 3,500 W (3.5 kW) |
| Alternator size | Ø160 × 140 mm |
| Frequency | 50 Hz |
| Engine model | BS-170 |
| Displacement | 236 cc |
| Fuel tank capacity | 15 L |
| Net weight | 44 kg |
| Gross weight | 44 kg |
| Box dimensions | 660 × 510 × 580 mm |
Selecting a welding setup
Specify the materials, welding process, electrode type and size, and expected welding duration when requesting a quotation. Ask for the welding current range and duty-cycle data, as these are needed to assess welding capacity. The 3,500 W generator figure does not specify welding amperage.
Frequently asked questions
Does 3,500 W describe the welding current?
No. It is the listed generator power figure. Welding current is specified in amperes and must be considered together with duty cycle and the selected welding process.
Can welding and AC power be used at the same time?
Request the model’s simultaneous-use limits before planning combined loads. The supplied power figures do not establish how much AC output is available during welding.
Request a quotation
Send BASOO the model BS-5500iWG, quantity and destination market, together with your welding requirements. Confirm the required output voltage and socket arrangement, welding current range, duty cycle and included welding accessories with your quotation.
